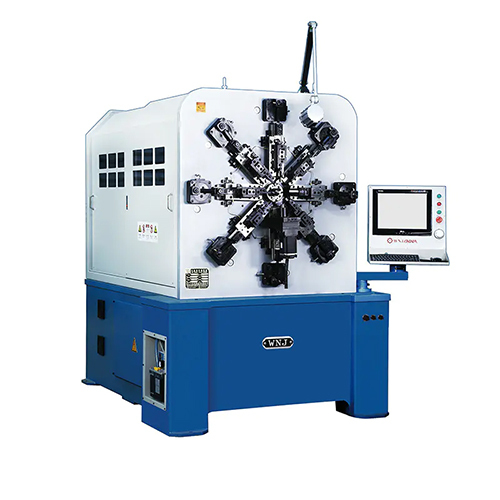

12AXIS CNC SPRING CAMLESS MACHINECNC-1225
1500000 INR/Unit
Product Details:
- Product Type Spring Forming Machine
- General Use Industrial Spring Production
- Material Alloy Steel
- Type Vertical
- Capacity Wire diameter 0.32.5mm
- Weight (kg) 3000 kg
- Computerized Yes
- Click to View more
X
12AXIS CNC SPRING CAMLESS MACHINECNC-1225 Price And Quantity
- 1500000 INR/Unit
- 1 Unit
- Tension, Compression, Torsion, Wire Forms
- 0C40C
- Unlimited
- Up to 200 programs
- 7-inch Touch Screen
- 360 full rotation
- 0.3mm to 2.5mm
- CNC Control
- 70 m/min
- Air Cooling
12AXIS CNC SPRING CAMLESS MACHINECNC-1225 Product Specifications
- Vertical
- 12 Axis
- Industrial Spring Production
- Yes
- 3000 kg
- Servo Motor
- 7.5 kW
- Wire diameter 0.32.5mm
- Adjustable, up to 3000 rpm
- 380V / 50Hz
- Yes
- Camless, High Precision, High Efficiency
- Customizable
- High
- Yes
- Electric
- Yes
- 2900mm x 1800mm x 2100mm
- Spring Forming Machine
- Alloy Steel
- Standard Gray
- Tension, Compression, Torsion, Wire Forms
- 0C40C
- Unlimited
- Up to 200 programs
- 7-inch Touch Screen
- 360 full rotation
- 0.3mm to 2.5mm
- CNC Control
- 70 m/min
- Air Cooling
12AXIS CNC SPRING CAMLESS MACHINECNC-1225 Trade Information
- 10 Unit Per Month
- 7 Days
- All India
Product Description
Experience a soaring level of productivity with the Best-seller 12AXIS CNC SPRING CAMLESS MACHINE CNC-1225. This masterpiece is in high demand due to its first-class precision and sizzling performance in spring fabrication. Engineered for outstanding efficiency, it features a 12-axis vertical camless design, supports wire diameters from 0.3mm to 2.5mm, and achieves a maximum feed speed of 70 m/min. The CNC-1225 delivers exceptional rigidity, high memory storage for up to 200 programs, and a user-friendly 7-inch touch screen-ideal for tension, compression, torsion springs, and wire forms. Trusted by manufacturers, exporters, and suppliers across India.
Operating Guidance, Features, and Industrial Use
The 12AXIS CNC SPRING CAMLESS MACHINE CNC-1225 streamlines spring manufacturing with automated operation and a user-friendly 7-inch touch screen. Suitable for tension, compression, and torsion springs, it serves the automotive, electronics, and appliance industries. Its camless, high-precision design reduces downtime. The air-cooled system supports long working hours, and the machine accommodates wires from 0.3mm to 2.5mm, guaranteeing flexibility for custom applications. Enjoy high efficiency, superior output quality, and effortless transition between spring types.
Order Fulfillment, Shipping, and Payment Information
For the CNC-1225, quotations are provided promptly after client inquiry. Payment terms are adaptable to support order completion, and transportation is handled efficiently with FOB Port services in India. Samples of the machine can be arranged to facilitate evaluation before bulk purchase. Once your order is finalized, our team ensures seamless delivery and comprehensive after-sales support, standing by you from placement and shipment to installation and commissioning.
Operating Guidance, Features, and Industrial Use
The 12AXIS CNC SPRING CAMLESS MACHINE CNC-1225 streamlines spring manufacturing with automated operation and a user-friendly 7-inch touch screen. Suitable for tension, compression, and torsion springs, it serves the automotive, electronics, and appliance industries. Its camless, high-precision design reduces downtime. The air-cooled system supports long working hours, and the machine accommodates wires from 0.3mm to 2.5mm, guaranteeing flexibility for custom applications. Enjoy high efficiency, superior output quality, and effortless transition between spring types.
Order Fulfillment, Shipping, and Payment Information
For the CNC-1225, quotations are provided promptly after client inquiry. Payment terms are adaptable to support order completion, and transportation is handled efficiently with FOB Port services in India. Samples of the machine can be arranged to facilitate evaluation before bulk purchase. Once your order is finalized, our team ensures seamless delivery and comprehensive after-sales support, standing by you from placement and shipment to installation and commissioning.
Specification
|
Style |
CNC-1225 |
CNC-1235 |
CNC-1250 |
CNC-1280 |
CNC-12100 |
|
Wire Diameter |
0.3-2.5 |
3-8 |
2.0-5.0 |
3-8 |
6-l0 |
|
Total Power |
16 |
25 |
45.6 |
66 |
95 |
|
Numberot Axes |
12 Axis |
12 Axis |
12 Axis |
12Axis |
12Axis |
|
Number of Wire Feed Axes |
2 Pairs |
3 Pairs |
3 Pairs |
3Pairs |
4Pairs |
|
Wire Feed Servo Motor |
2.7KW |
5.5KW |
11KW |
15KW |
30KW |
|
Rotary Wire Servo Motor |
3.8KW |
5.5KW |
11 KW |
15KW |
30KW |
|
Blade of Slider Servo Motor |
1KWx8 |
1.5KWx8 |
2.7KWx8 |
3.8KWx8 |
7KWx8 |
|
Rotary Mandrel Servo Motor |
1KW |
1KW |
1 KW |
2.7KW |
3.8KW |
|
Curved Shaft Servo Motor |
0.4KW |
1KW |
1 KW |
2.7KW |
3.8KW |
|
Machine Dimension(LxWxH) |
1700x1600x1685 |
2100x1900x2000 |
2700x1500x2150 |
3500x2400x2500 |
4000x2800x2700 |
|
Machine Weight |
1500 |
2700 |
5500 |
8000 |
10000 |
|
Voltage |
3AC 380V/50HZ |
3AC 380V/50HZ |
3AC 380V/50HZ |
3AC 380V/50HZ |
3AC380V/50HZ |
FAQ's of 12AXIS CNC SPRING CAMLESS MACHINECNC-1225:
Q: How does the camless design benefit spring manufacturing?
A: The camless structure reduces mechanical complexity, minimizing maintenance and increasing precision. This innovative design enables more efficient production of complex springs, allowing quick changes between wire forms and spring types.Q: What types of springs and wires can the CNC-1225 produce?
A: The CNC-1225 supports the fabrication of tension, compression, torsion, and various wire forms. It's suitable for wire diameters ranging from 0.3mm to 2.5mm, making it highly versatile for a wide range of industrial spring applications.Q: Where is the CNC-1225 typically deployed?
A: This advanced machine is widely used in automotive, electronics, appliance manufacturing, and general industrial settings where large-scale, precision spring production is required.Q: What is the process for ordering the CNC-1225 and arranging transport?
A: Upon request, clients receive a prompt quotation. Once payment terms are agreed, the order is finalized, and transportation is managed efficiently via FOB Port India, ensuring smooth shipment and delivery.Q: What features make the CNC-1225 user-friendly and efficient?
A: The machine offers a 7-inch touch screen interface, up to 200 program memory storage, fully automatic operation, customizable table size, air cooling for extended use, and precise CNC control for optimal efficiency.Tell us about your requirement
