ZW-880 8AXIS CNC SPRING WIRE BENDING MACHINE

Get a Price/Quote

Product Details:

Product Type CNC Spring Wire Bending Machine
General Use Spring and Wire Forming
Material Carbon Steel, Stainless Steel Wire
Type Automatic CNC
Capacity Wire Diameter 2.0-8.0mm
Weight (kg) 2200 kg
Computerized Yes
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ZW-880 8AXIS CNC SPRING WIRE BENDING MACHINE Price And Quantity

Minimum Order Quantity 1 Unit

ZW-880 8AXIS CNC SPRING WIRE BENDING MACHINE Product Specifications

Axial Choice 8 Axis
Product Type CNC Spring Wire Bending Machine
Voltage 380V/50Hz
Weight (kg) 2200 kg
Dimension (L*W*H) 2100 mm x 1400 mm x 1800 mm
Capacity Wire Diameter 2.0-8.0mm
Automatic Yes
Power Source Electric
Motor Servo Motor
Spindle Speed Adjustable, up to 600 rpm
Power Consumption 7.5 kW
Computerized Yes
Bar Feeder Included
Feature High Precision, Multi-function
PLC Control Yes
Type Automatic CNC
Table Size Large
Rigidity High
General Use Spring and Wire Forming
Color White and Blue
Material Carbon Steel, Stainless Steel Wire

ZW-880 8AXIS CNC SPRING WIRE BENDING MACHINE Trade Information

Delivery Time 10-15 Days

Product Description

Specification

Tyle	ZW880
Wire Diameter	2080 soft wire 2060 rigid wire
Max Wire Feed Speed	60
Number of Axes	8 Axis
Number of Wire Feed	3 Pairs
Total Power	171 KW
Wire Feed Servo Motor	38 KW
Rotary Wire Servo Motor	38 KW
Cutter Servo Motor	20 KW
Bending Servo Motor	15KW2PCS
Lift Tray Servo Motor	15KW3PCS
Bending Head Body Distance	700mm
Machine Outside Dimension	3000x1850x1750mm
Machine Net Weight	2800KG

Cutting-Edge Control & Multilingual Interface

The ZW-880 is engineered with an industrial PLC touch screen, offering intuitive control and rapid setup. Its memory storage supports up to 1000 unique program sets, streamlining the process for recurring production runs. With multi-language support, operators from diverse backgrounds can efficiently program and monitor the machine, maximizing user-friendliness and process transparency.

Precision & Reliability in Wire Forming

Utilizing a precision ball screw transmission and high-rigidity construction, the ZW-880 ensures outstanding accuracy and repeatability in every part produced. Its automatic oil lubrication and integrated air cooling systems extend the machine's lifespan while sustaining optimal operation, even during high-speed production cycles up to 600 rpm.

Comprehensive Safety & Versatility

The automatic stop and alarm feature minimizes risks by halting production in the event of an anomaly. This, coupled with compatibility for various wire materials such as carbon steel and stainless steel, makes the ZW-880 ideal for automotive, electronics, and general industrial spring and wire forming tasks, supporting wire diameters from 2.0mm to 8.0mm.

FAQ's of ZW-880 8AXIS CNC SPRING WIRE BENDING MACHINE:

Q: How does the ZW-880 ensure precise and repeatable wire bending?

A: The ZW-880 employs a precision ball screw transmission system and servo motor-driven control to deliver accurate and consistent bends. The industrial PLC touch screen allows operators to fine-tune settings, while the robust construction ensures high rigidity-vital for repeatability in large production runs.

Q: What types of wire and diameters can this CNC machine handle?

A: This machine is designed for versatility, supporting wire diameters from 2.0mm to 8.0mm. It can process a variety of materials, including carbon steel and stainless steel wire, making it suitable for different spring and wire forming applications across multiple industries.

Q: When is the automatic stop and alarm system triggered?

A: The automatic stop and alarm system activates immediately when the machine detects abnormalities such as wire feeding errors or mechanical issues. This feature helps prevent damage to both the machine and the workpiece while ensuring operator safety.

Q: Where can the ZW-880 be effectively utilized?

A: The ZW-880 is widely applicable in automotive, electronics, and industrial spring manufacturing sectors. Its multi-language interface and programmable memory make it suitable for use in international production facilities, exporters, and manufacturers based in India and abroad.

Q: What is the process for programming and storing production setups?

A: Operators use the LCD touch screen interface to input and adjust production parameters. Up to 1000 unique program sets can be stored in the machine's memory, facilitating fast and seamless transitions between different wire bending jobs.

Q: How does the lubrication and cooling system benefit machine operation?

A: The automatic oil lubrication and integrated air cooling systems continuously maintain optimal working conditions, reducing wear on moving components, improving machine longevity, and sustaining precise performance even during extended or high-speed operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CNC Wire Bending Machine' category

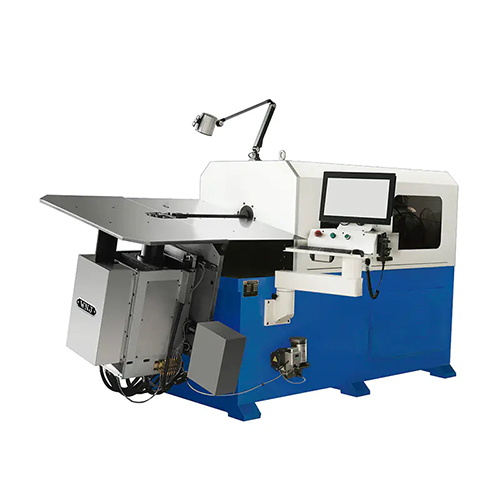

CNC SPRING WIRE BENDING MACHINE ZW-740 7AXIS Price : 1500000 INR/Unit Minimum Order Quantity : 1 Computerized : Yes Power Source : Electric Motor : Other, Servo Motor Spindle Speed : Variable Power Consumption : 7.5 kW Capacity : Wire Diameter 2.04.0 mm Dimension (L*W*H) : 2400 x 1200 x 1700 mm Automatic : Yes Weight (kg) : 2100 kg Axial Choice : 7 Axis Voltage : 380V / 50Hz Product Type : Wire Bending Machine Color : Other, Blue and White Material : Other, Steel Wire, Stainless Steel General Use : Spring and wire bending Rigidity : High Type : Other, Automatic CNC Spring Wire Bending Machine Table Size : Customizable Bar Feeder : Other, Available PLC Control : Yes Feature : Other, High Precision, Computerized Control, Stable Performance

Send Inquiry

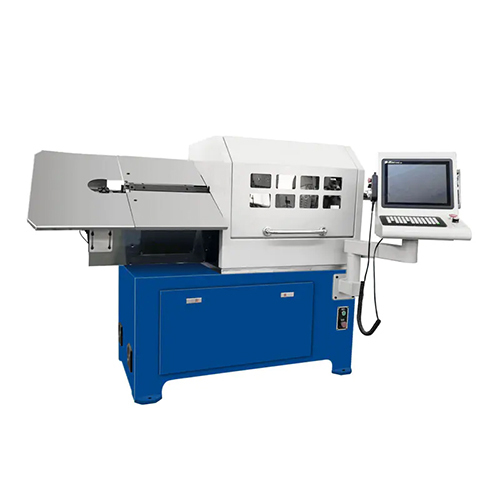

ZW-480 4AXIS CNC SPRING WIRE BENDING MACHINE Minimum Order Quantity : 1 Computerized : Yes Power Source : Electric Motor : Other, Servo Motor System Spindle Speed : High Speed Operation Power Consumption : 7.5 kW Capacity : Wire Diameter 2.08.0 mm Dimension (L*W*H) : 2200 x 1200 x 1900 mm Automatic : Other, Fully Automatic Weight (kg) : 1850 kg Axial Choice : 4 Axis Voltage : 380V/50Hz Product Type : CNC Spring Wire Bending Machine Color : Other, Blue & Silver Material : Other, Spring Steel, Carbon Steel, Stainless Steel Wire General Use : Spring and Wire Form Manufacturing Rigidity : High Type : Other, Automatic CNC Machine Table Size : Customizable Bar Feeder : Other, Automatic Bar Feeder PLC Control : Yes Feature : Other, High Precision Wire Forming
