CNC-1240 12AXIS CNC SPRING CAMLESS MACHINE

Name: CNC-1240 12AXIS CNC SPRING CAMLESS MACHINE
Brand: GLOBAL CNC MACHINERY
Price: 4200000 INR
Availability: InStock

4200000 INR/Unit

Get a Price/Quote

Product Details:

Product Type Spring Forming Machine
Type Horizontal
Automatic Yes
Power Source Electric
Feature High Speed, High Precision
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

CNC-1240 12AXIS CNC SPRING CAMLESS MACHINE Price And Quantity

Minimum Order Quantity 1 Unit
Price 4200000 INR/Unit

CNC-1240 12AXIS CNC SPRING CAMLESS MACHINE Product Specifications

Type Horizontal
Feature High Speed, High Precision
Product Type Spring Forming Machine
Power Source Electric
Automatic Yes

CNC-1240 12AXIS CNC SPRING CAMLESS MACHINE Trade Information

Supply Ability 10 Unit Per Month
Delivery Time 10-15 Days

Product Description

Specification

	CNC-1225	CNC-1240	CNC-1260	CNC-1280
Wire Diameter	40.3-	41.5-<14	42-	43-48
Total Power	14.8KW	26.2KW	57KW	59.2KW
Numberot Axes	12 Axis	12 Axis	12 Axis	12Axis
Number of Wire Feed Axes	2 Pairs	3 Pairs	3 Pairs	4Pairs
Wire Feed Servo Motor	2.7KW	5.5KW	15KW	15KW
Rotary Wire Servo Motor	2.7KW	2.7KW	4.5KW	15KW
Blade of Slider Servo Motor	1KWx8	2KWx8	4.5KWx8	4.5KWx8
Rotary Mandrel Servo Motor	1KW	1KW	1.5KW	2.7KW
Curved Shaft Servo Motor	0.4KW	1KW	1.5KW	2.7KW
Machine Dimension(LxWxH)	1700x1600x1685	2100x1900x2000	2750x3360x2400	3500x2400x2500
Machine Weight	1500	4000	7000	8000
Voltage	3AC 380V/50HZ	3AC380V/50HZ	3AC380V/50HZ	3AC 380V/50HZ

Advanced Precision and Speed

With its 12-axis camless technology, the CNC-1240 machine delivers exceptional speed and reliable precision. This ensures intricate springs are formed consistently, reducing error rates and enhancing output quality for demanding industrial applications.

Automated Efficiency

Built as a fully automatic solution, the CNC-1240 streamlines production, minimizing manual intervention. The electric power source and horizontal layout further contribute to seamless workflows, maximizing throughput for larger manufacturing operations in India and abroad.

FAQ's of CNC-1240 12AXIS CNC SPRING CAMLESS MACHINE:

Q: How does the camless design of the CNC-1240 improve spring manufacturing?

A: The camless design provides greater flexibility in producing complex and precise spring shapes without relying on mechanical cams. This allows for faster setup times, reduced maintenance, and high adaptability to custom spring designs.

Q: What benefits do exporters, manufacturers, and traders gain from the 12-axis capability?

A: The 12-axis configuration enables intricate bending and forming operations, enhancing production efficiency and ensuring consistent quality. This is particularly valuable for businesses aiming to meet both domestic and international demands with varied spring specifications.

Q: When is it most advantageous to use the CNC-1240 12AXIS CNC Spring Camless Machine?

A: This machine is ideal when high-volume, high-precision spring manufacturing is required, especially for complex designs where traditional cam-based systems are insufficient or would be less efficient.

Q: Where is the CNC-1240 manufactured and who are its primary users?

A: The CNC-1240 is manufactured in India, and it primarily serves exporters, manufacturers, suppliers, and traders in the spring industry, both within India and international markets.

Q: What is the process of operating the CNC-1240 machine?

A: Operation involves programming the desired spring specifications into the CNC control system. The machine then automatically handles wire feeding, cutting, and forming, managed by the electric-powered, camless multi-axis setup for accurate outcomes.

Q: What are the main usage scenarios for this spring machine?

A: The CNC-1240 is widely used in the automotive, electronics, and industrial sectors, where high-speed, high-precision, and automated production of custom springs is essential for assembly lines and finished products.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CNC Spring Camless Machine' category

12AXIS CNC SPRING CAMLESS MACHINECNC-1225 Price : 1500000 INR/Unit Minimum Order Quantity : 1 Product Type : Spring Forming Machine Power Source : Electric Type : Vertical Automatic : Yes Table Size : Customizable Material : Other, Alloy Steel Weight (kg) : 3000 kg Dimension (L*W*H) : 2900mm x 1800mm x 2100mm Axial Choice : 12 Axis Color : Other, Standard Gray Power Consumption : 7.5 kW General Use : Industrial Spring Production Feature : Other, Camless, High Precision, High Efficiency Voltage : 380V / 50Hz Spindle Speed : Adjustable, up to 3000 rpm Capacity : Wire diameter 0.32.5mm Computerized : Yes PLC Control : Yes Rigidity : High

Send Inquiry

10AXIS CNC Spring Coiling Machine CNC1240 Price : 2000000 INR/Unit Minimum Order Quantity : 1 Product Type : Spring Coiling Machine Power Source : Electric Type : Vertical Automatic : Yes Table Size : Standard Material : Other, Iron/Steel Wire Weight (kg) : 1800 kg Dimension (L*W*H) : 1900 x 1100 x 2100 mm Axial Choice : 10 Axis Color : Other, Standard / Grey Power Consumption : 6 kW General Use : Spring Forming & Coiling Feature : Other, High precision, Stable performance, Easy operation Voltage : 380V/50Hz Spindle Speed : 100400 rpm Capacity : Max. wire diameter 4.0 mm Computerized : Yes PLC Control : Yes Rigidity : High

Send Inquiry

10AXIS CNC Spring Forming Machine CNC-1025 Price : 1500000 INR/Unit Minimum Order Quantity : 1 Product Type : Spring Coiling Machine Power Source : Electric Type : Other Automatic : Yes Table Size : Customizable worktable for various spring sizes Material : Other, Applicable for steel, stainless steel, and various wires Weight (kg) : 1500 kg Dimension (L*W*H) : 2100 mm x 1200 mm x 1850 mm Axial Choice : 10 Axes (full CNC control) Color : Other, Industrial Grey & Blue Power Consumption : 6.0 kW General Use : Production of compression and torsion springs Feature : High Speed, High Precision Voltage : 380V / 50Hz Spindle Speed : Highly variable (up to 3000 rpm) Capacity : Wire Diameter 0.3 mm 2.5 mm Computerized : Yes

Send Inquiry

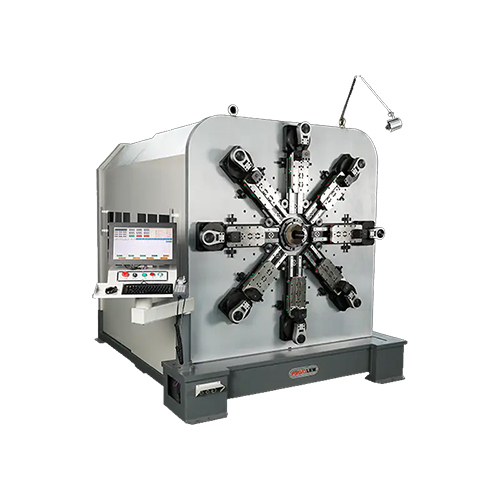

12AXIS CNC Spring Camless Machine CNC-1280 Price : 3000000 INR/Unit Minimum Order Quantity : 1 Product Type : Spring Camless Machine Power Source : Electric Type : Other Table Size : Customized / Standard Material : Other, Carbon Steel, Stainless Steel, Alloy Steel Weight (kg) : 3500 kg Dimension (L*W*H) : 2400mm 1700mm 2300mm Axial Choice : 12 Axis Color : Other, Industrial Grey/Blue Power Consumption : 15 kW General Use : Spring Forming, Wire Bending Voltage : 380V / 50Hz Spindle Speed : Adjustable, up to 200 rpm Capacity : 0.3mm 8.0mm Wire Diameter Computerized : Yes PLC Control : Yes
